Trimble TSC7 Data Collector

Description

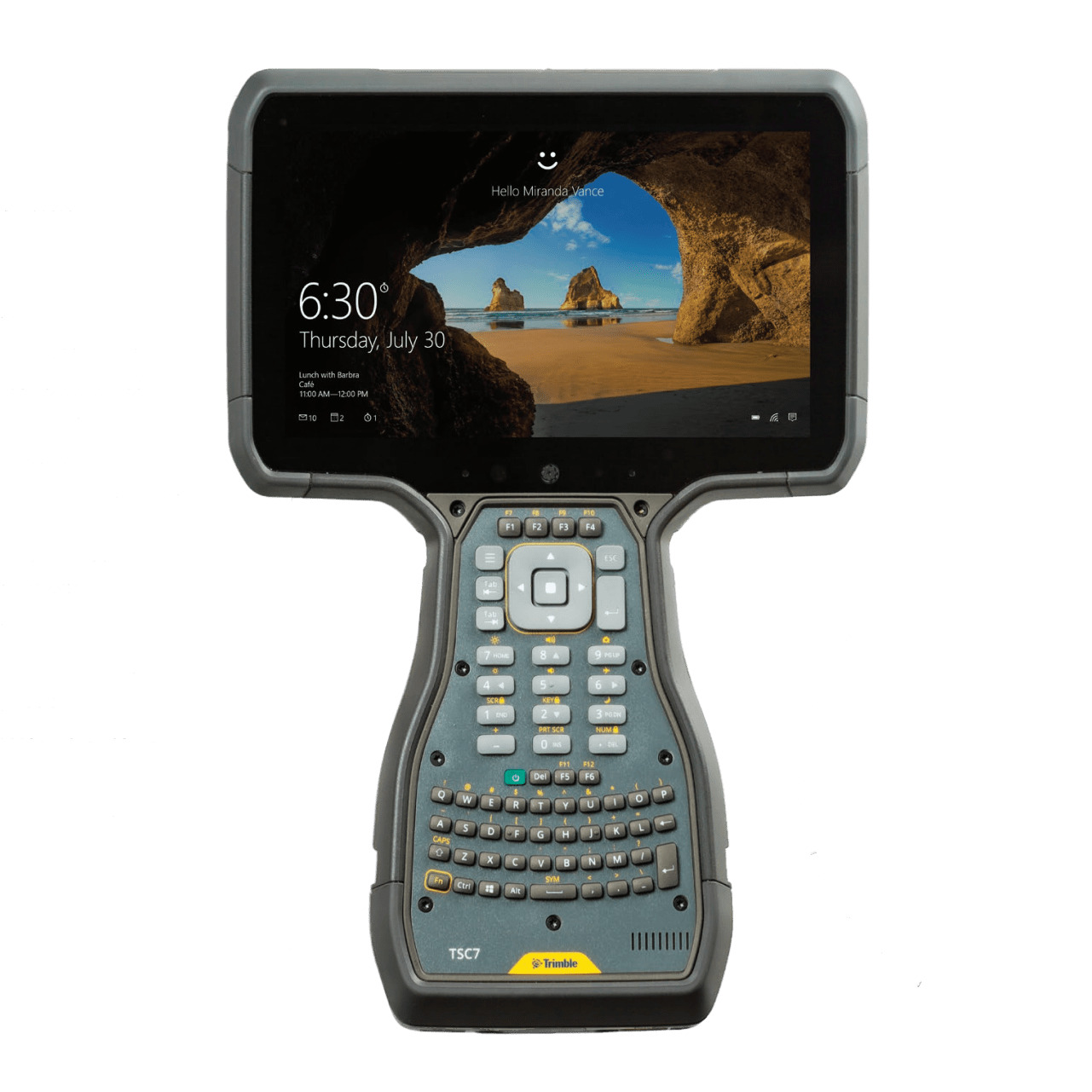

Trimble TSC7 Data Collector

The Trimble TSC7 Data Collector is a versatile and powerful device designed to streamline survey workflows. It offers the latest in field technology, providing direct connectivity and efficient operation for various applications. Here are some key features and differences compared to the TSC5:

• Versatile and Powerful:

  • The TSC7 is a wirelessly connected, rugged handheld data collector for GNSS or total station operations
  • It delivers the latest in field technology, allowing users to connect directly to streamlined survey workflows, Large, High-Resolution Touchscreen:

• • The TSC7 features a 7-inch high-resolution touchscreen, providing a larger and more detailed display compared to the TSC5’s 5-inch screen
  • The larger screen offers improved visibility and ease of use, especially when working with complex data and maps.

• Improved Connectivity:

• • The TSC7 offers enhanced connectivity options, including integrated 4G LTE, Wi-Fi, and Bluetooth, allowing for seamless data transfer and communication

• • The TSC5 also has these connectivity features, but the TSC7 may offer faster and more reliable connections due to its more advanced hardware.

• Advanced Processing Power:

• • The TSC7 is equipped with a more powerful processor, enabling faster data processing and smoother operation compared to the TSC5

• • This enhanced processing power allows for more efficient data collection and analysis, saving time and improving productivity in the field.

• Long Battery Life:

• • The TSC7 is designed to provide all-day battery life, ensuring uninterrupted operation even during extended surveying tasks

• • The TSC5 also offers long battery life, but the TSC7’s more advanced hardware may provide even better power efficiency.

• Trimble Access Software:

• • Both the TSC7 and TSC5 are optimized to run the latest Trimble Access software, providing a comprehensive solution for survey data collection and management

• • Trimble Access offers a range of powerful features, including advanced data processing, stakeout, and surveying workflows, enhancing the capabilities of both data collectors.

Full Specifications

Here are the full specifications for the Trimble TSC7 Data Collector:

• Operating System: Windows 10
• Processor: Intel N4200, 64-bit quad core
• Memory: 8 GB RAM, 128 GB internal storage
• Display: 7-inch high-resolution touchscreen, sunlight-readable
• Connectivity: Integrated 4G LTE, Wi-Fi, Bluetooth, NFC
• Battery Life: 8-10 hours, hot-swappable batteries
• Sensors: Accelerometer, gyroscope, magnetometer, ambient light sensor
• Ports: USB-C, 3.5 mm audio jack, power input
• Certifications: IP68, MIL-STD-810G
• Dimensions: 11.9″ x 8.2″ x 2.76″ (302 mm x 209 mm x 70 mm)
• Weight: 3.1 lbs (1.42 kg)
