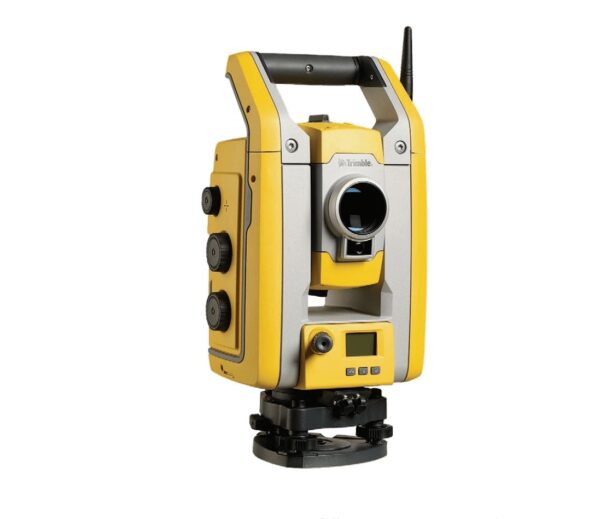

Trimble S5 Robotic Total Station

Home>>Geospatial Survey Equipment>>Total Stations>>Trimble S5 Robotic Total Station
trimble-s5

Trimble S5 Robotic Total Station

$19,650.00

Trimble S5 Features:

  • Angular accuracy: 1″, 2″, 3″, or 5″
  • EDM technology: DR Plus
  • EDM accuracy: 1.0 mm + 2 ppm Prism/2.0 mm + 2 ppm DR
  • Maximum range: 5,500 m
  • Built on proven Trimble technologies, including Trimble MagDrive, SurePoint, and the DR Plus EDM
  • Solo working: Only needing one operator, you can get more out of your time
  • Active Tracking technology: Reliably track your prism in the most challenging environments
  • Silent Rotation: Turn-to points with lightning-fast speeds, rotating at 115 degrees per second with precision Trimble MagDrive technology
  • Trimble Sentinel: Optional device tracking software to keep tabs on your S5 total station and know where it is all day, every day
  • Compatible Data Collectors: Trimble TSC7, Trimble TSC5, Trimble TCU5, Trimble TDC650, Trimble TDC600, Trimble T100, Trimble T10x, and Trimble T7

The Trimble S5 is an efficient and dependable robotic total station that is designed for remote, solo operation. It is built with proven Trimble technologies and offers high accuracy and precision for surveying professionals.
See S5 datasheet for detailed specs.

For any questions, call us at 1-833-TRAKKIT
Email us: [email protected]

*All products ship from Fort Lauderdale, FL

SKU: TK-S5 Categories: ,

Description

Trimble S5 Robotic Total Station

The Trimble S5 robotic total station is a reliable and efficient tool for surveying professionals. It is built with proven Trimble technologies, including Trimble MagDrive, SurePoint, and the DR Plus EDM, which ensure high accuracy and precision.


Key Features:

  • Angular accuracy: 1″, 2″, 3″, or 5″
  • EDM technology: DR Plus EDM accuracy 1.0 mm + 2 ppm Prism/2.0 mm + 2 ppm DR
  • Silent Rotation: Built with Trimble MagDrive, it can turn-to points with lightning-fast speeds, rotating at 115 degrees per second with precision Trimble MagDrive technology.
  • Active Tracking: Add Active Tracking technology to reliably track your prism in the most challenging environments.
  • Trimble Sentinel: Add our optional device tracking software to keep tabs on your S5 total station and know where it is all day, every day.

Differences to the S7

The Trimble S7 is another robotic total station from Trimble. While the S5 is designed for remote, solo operation using robotic technology, the S7 is designed for more complex surveying tasks that require higher accuracy and precision.


Compatible Data Collectors

The Trimble S5 total station is compatible with a range of data collectors, including:

  • Trimble TSC7
  • Trimble TSC5
  • Trimble TCU5
  • Trimble TDC650
  • Trimble TDC600
  • Trimble T100
  • Trimble T10x
  • Trimble T7



These field devices are optimized for the way you work, whether you need a field controller to pair with your GNSS receiver and total station for surveying or a fully integrated GNSS handheld for GIS data collection.

Datasheet

Trimble S5 Datasheet
